Product Description

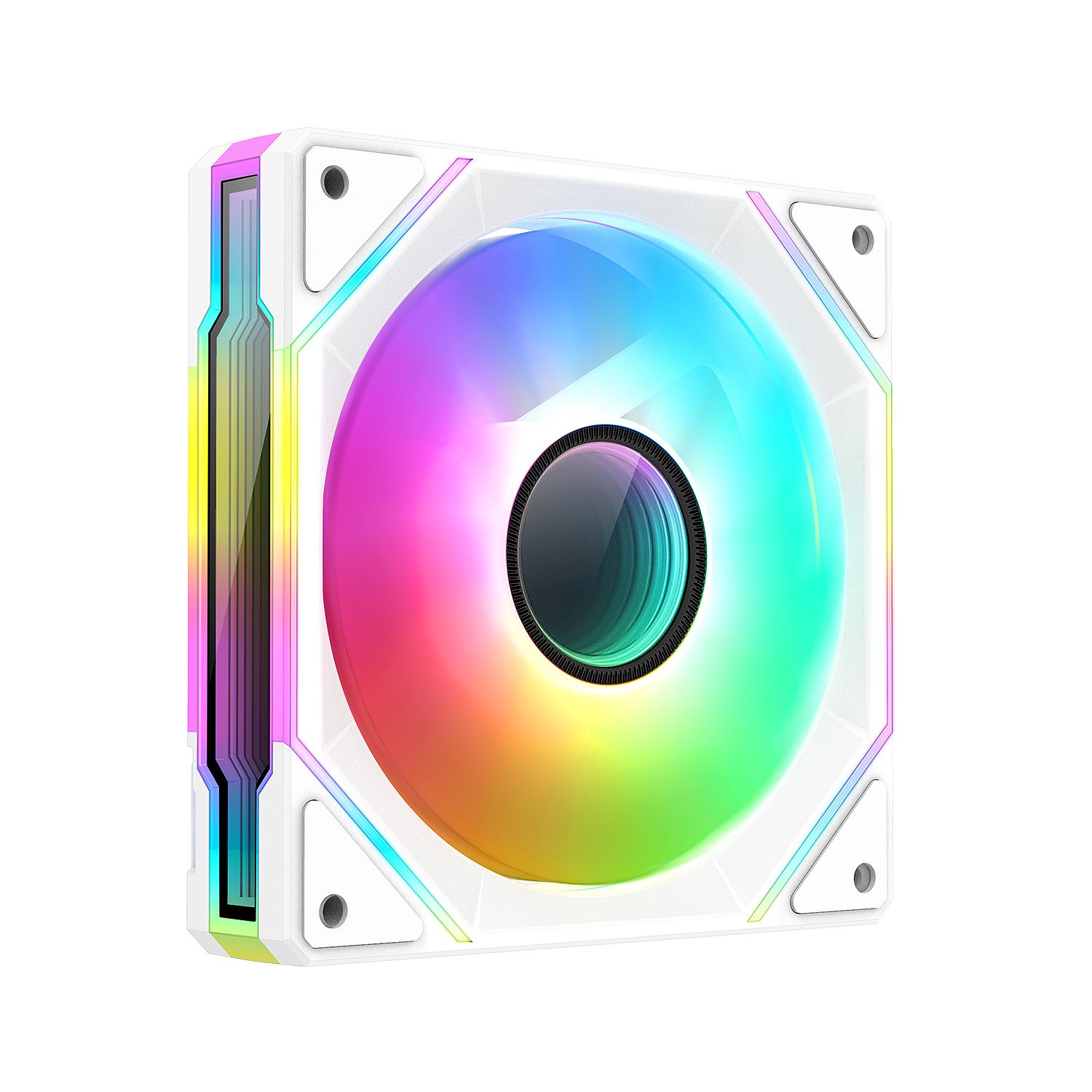

ZM5P 120mm RGB Case Fan
The ZM5P is a 120mm and 140mm RGB case fan series designed for gaming PCs, custom computer builds and PC cooling applications.
Built with a high-performance HDB bearing, the ZM5P provides smooth and stable operation while reducing friction and wear during continuous use. The 9-blade fan design delivers up to 61.5 CFM airflow and 2.0 mmH₂O static pressure on the 120mm version at up to 1800 RPM.
The fan also features 24 LED lights with a 5V 3-pin ARGB connection, allowing the lighting to synchronize with compatible motherboard RGB systems. A 4-pin PWM connection provides fan speed control for compatible PC systems.
Available in black and white, the ZM5P is suitable for gaming PCs, custom computer systems, workstations and PC hardware brands looking for an RGB case fan platform for OEM or private label supply.
120mm RGB Case Fan Key Features
High-Performance HDB Bearing
The ZM5P uses a high-performance HDB bearing with an internal oil lubrication system. The oil film between the shaft and sleeve helps reduce friction and wear during operation.
This bearing structure provides smooth rotation and stable long-term operation while helping reduce mechanical noise and extend the service life of the PC cooling fan.
The rated service life is up to 50,000 hours under specified operating conditions.
High Airflow and Static Pressure
The 120mm ZM5P RGB case fan reaches up to 1800 RPM and provides:
- Airflow: 61.5 CFM
- Static pressure: 2.0 mmH₂O
- Maximum speed: 1800 RPM
The combination of airflow and static pressure makes the fan suitable for general PC case ventilation and applications where air needs to move through restricted areas inside the chassis.
It can be used as an intake or exhaust fan depending on the PC case configuration.
Low-Noise 9-Blade Design
The ZM5P uses a 9-blade fan design developed to balance airflow and operating noise.
The maximum noise level is rated at 30 dB(A). Rubber vibration pads and fan balancing help reduce vibration transferred to the PC chassis during operation.
This makes the ZM5P suitable for gaming PCs, workstations and other systems where controlled acoustic performance is important.
24-LED ARGB Infinity Mirror Lighting
The ZM5P features an infinity mirror lighting design with 24 LED lights.
The 5V 3-pin ARGB connection allows the fan lighting to synchronize with compatible motherboard RGB systems.
Compatible lighting platforms include:
- ASUS Aura Sync
- GIGABYTE RGB Fusion
- MSI Mystic Light Sync
- Other compatible 5V 3-pin ARGB motherboard systems
The ARGB lighting supports a wide range of colors and lighting effects for gaming PCs and custom computer builds.
PWM Speed Control
The ZM5P uses a 4-pin PWM fan connector for motherboard-based fan speed control.
PWM control allows compatible motherboards or fan controllers to adjust fan speed according to system temperature and cooling requirements.
The fan also includes 5V 3-pin ARGB connectors for lighting control.
Cable Daisy Chain Connection
The ZM5P can connect multiple fans through its cable-based male and female connectors.
Each fan is equipped with:
- 5V 3-pin ARGB male/female connector
- 4-pin PWM male/female connector
For stable operation, we recommend connecting no more than three fans in a daisy-chain configuration.
The ZM5P uses cable-based daisy chaining. It does not use a wireless or contact-based modular interlocking system.
Applications
ZM5P RGB case fans are suitable for:
- Gaming PCs
- Custom-built computers
- Workstations
- PC system integrators
- Computer hardware brands
- DIY PC builds
- PC cooling product lines
- OEM and private label projects
OEM and Private Label RGB Case Fan Supply
Zemyn supplies RGB case fans for PC hardware brands, distributors, system builders and e-commerce businesses.
The ZM5P platform can support OEM and private label projects including:
- Custom logo
- Customized packaging
- Black or white fan frame
- Product configuration
- Cable configuration
- Bulk production
- Sample development
If you are developing your own RGB PC cooling product line, we can discuss the required fan size, lighting configuration, connector requirements and packaging before production.
Why Choose Zemyn for RGB Case Fans
Zemyn combines RGB case fan production with plastic injection molding capability, allowing us to support both standard fan supply and customized PC cooling projects.
Our team can work with existing product specifications or discuss modifications for OEM projects, including fan appearance, plastic components, lighting configuration, connectors and packaging.
For distributors and PC hardware brands, this allows the same product platform to be developed for different markets and branding requirements.
Request ZM5P Samples or Pricing
Tell us your required fan size, color, quantity and target market.
We can provide the available ZM5P configuration, technical specifications, sample options and quotation for your project.
